1.6 pitch detector module

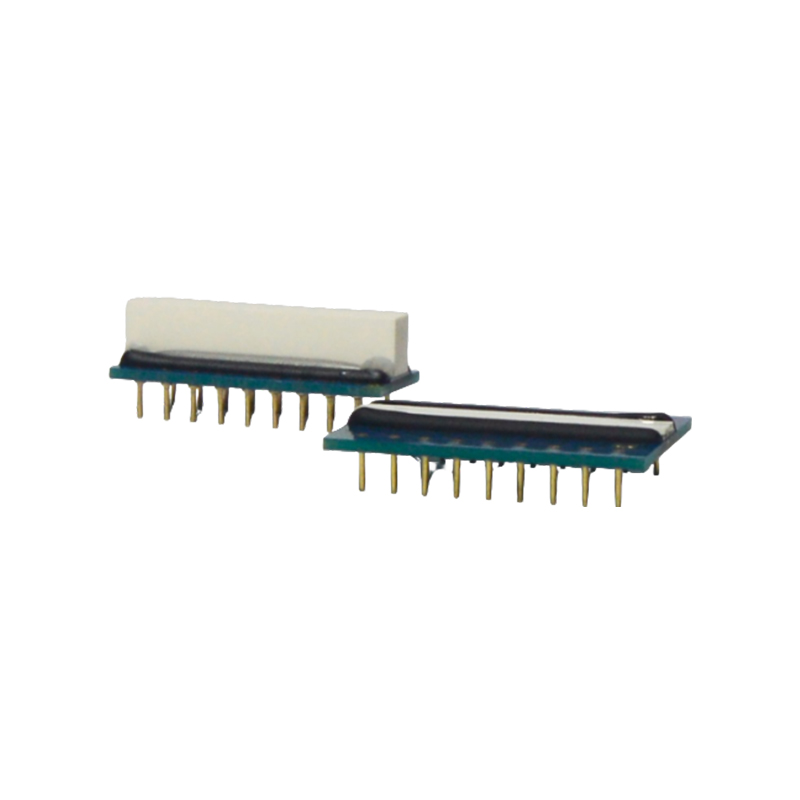

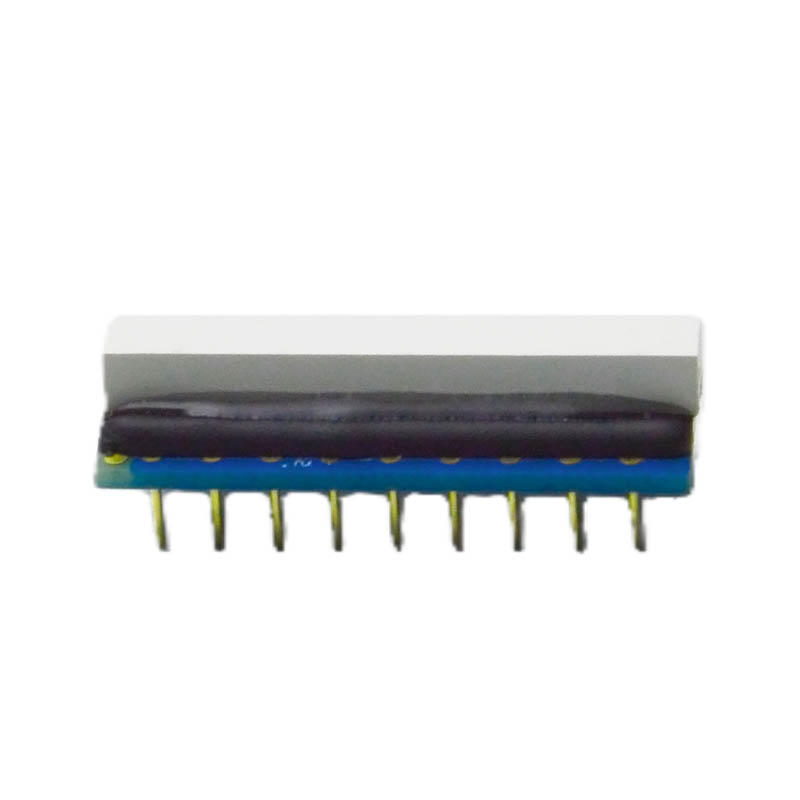

SatuPD16CA series detector module is a linear detector array (LDA) composed of 16-pixcel front-side illuminated (FSI) silicon photodiode. Silicon photodiode feature low dark current, low terminal capacitance, high photosensitivity, and wide coverage, making them suitable for various X-ray detection applications. Available in two PCB sizes (wide and narrow versions), the module can be coupled with scintillators such as GOS, CsI, CdWO₄, and GAGG to enable single-energy or dual-energy imaging. The meticulously designed assembly process ensures easy integration, stability, and reliability.

Consult

Features Technical Indicators Overall Dimension

Features:
• X-ray energy range: 30 to 160kV, or beyond
• Spectrum response range: 350 to 1100nm
(Peak sensitivity wavelength: 850nm)
• Element pitch: 1.575mm (×16 pixcels)
• Element size: 1.4×2.5mm (one pixcel)
•Suitable for diverse Industrial and Security applications including security screening, food inspection, raw material sorting, industrial CT imaging.

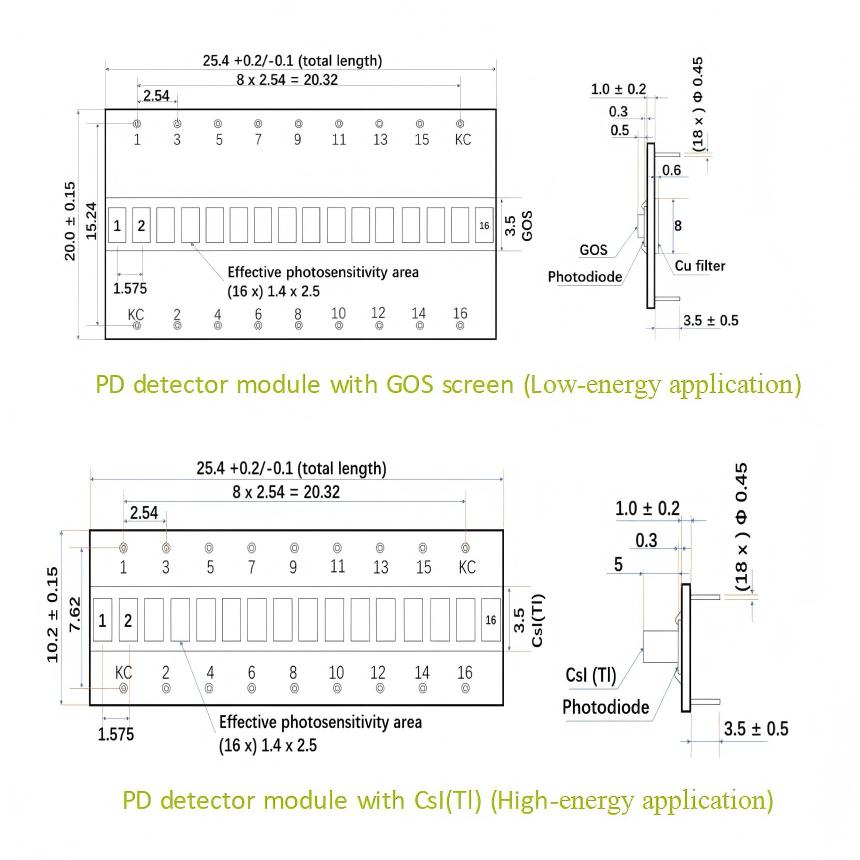

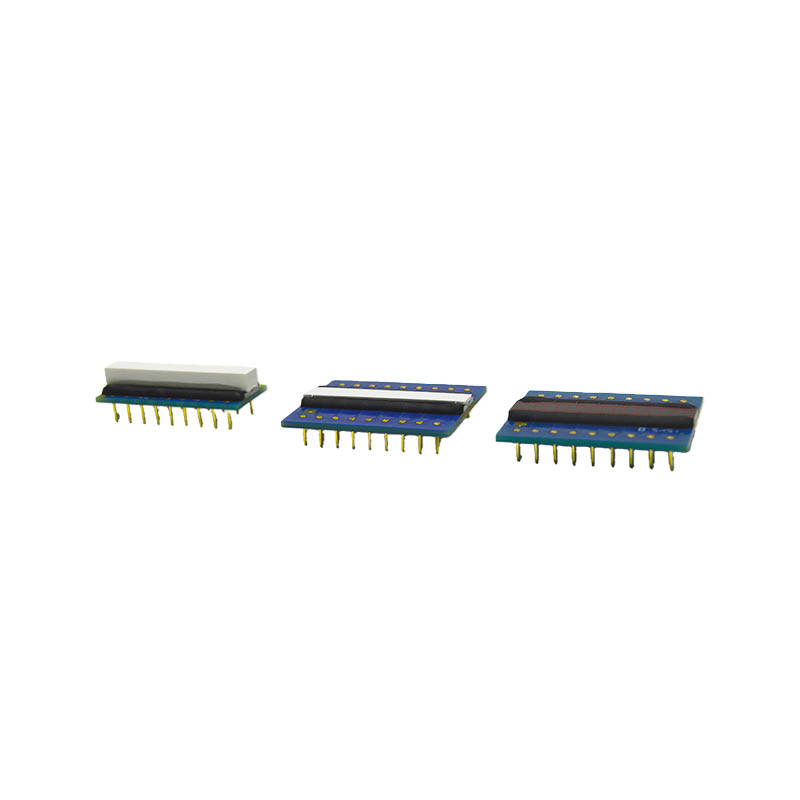

• Mounted on board size: 25.4×20.0 (Low Energy), 25.4×10.2 (High Energy)
• Supports dual energy imaging

Applications:
• Security screening
• Food inspection
• Raw material sorting
• Industrial CT imaging
• Non-destructive testing
• Foreign partical detection

X-ray energy	Low- energy application		High- energy application
Scintillator*	GOS screen	CsI(Tl)	CsI(Tl)	GOS ceramic
Number of pixels	16
Pixcel pitch (mm)	1.575
Active area size W×H (mm)	1.4×2.5
Spectrum response range (nm)	350~1100
Peak sensitivity wavelength (nm)	850
Photosensitivity (A/W)	Typ.0.38, Min 0.36, @550nm
Sensitivity non-uniformity (%)	±15
Dark current (pA)	Typ. 0.5, Max 1, @-10mV
Terminal Capacitance (pF)	Typ. 52, Max 60, @0V, f=10kHz
Reverse voltage (V)	Max 10
Operating temperature (℃)	-10~60
Storage temperature (℃)	-20~70
*SatuPD16A series detector module are also compatible with other scintillators (CdWO₄/GAGG, custom made devices).
