CdWO₄ Crystal and Arrays

CWO1D01625C0
CWO1D01616C0
CWO1D12804C0
CWO1D25602C0
All support customized drawings.

Consult

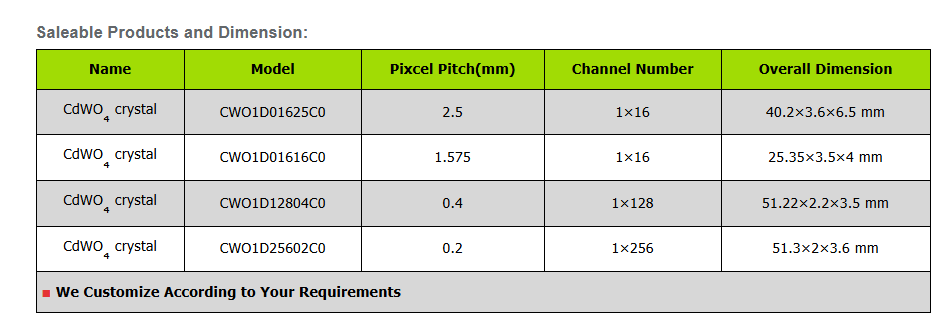

Features Technical Indicators Overall Dimension

Cadmium tungstate (CdWO₄) scintillation crystals are self-activated luminescent materials. Characterized by low afterglow, high X-ray absorption coefficient, elevated density, strong radiation resistance, non-deliquescence, and excellent stability, they represent the material of choice for core components in large-scale security inspection systems.
The company maintains a complete crystal processing production line, enabling customized fabrication of one-dimensional and two-dimensional arrays with various dimensions, as well as specialized shaped products.

Features:
• High light-output
• Low afterglow
• Outstanding radiation hardness
• excellent x-ray stopping power
• High density

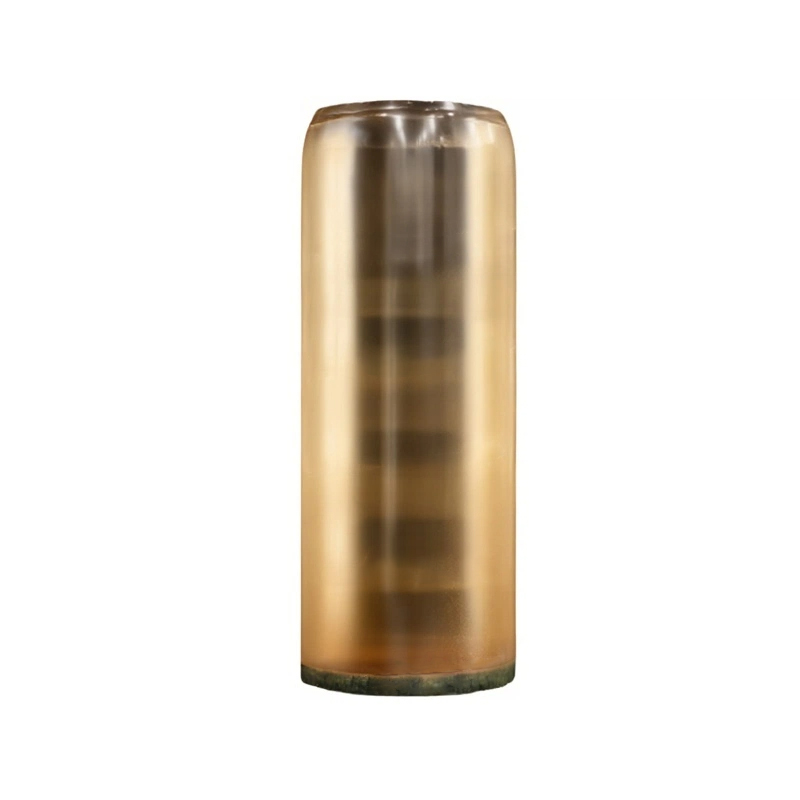

• Dia. 80×200 mm (crystal ingot)
• Customizable

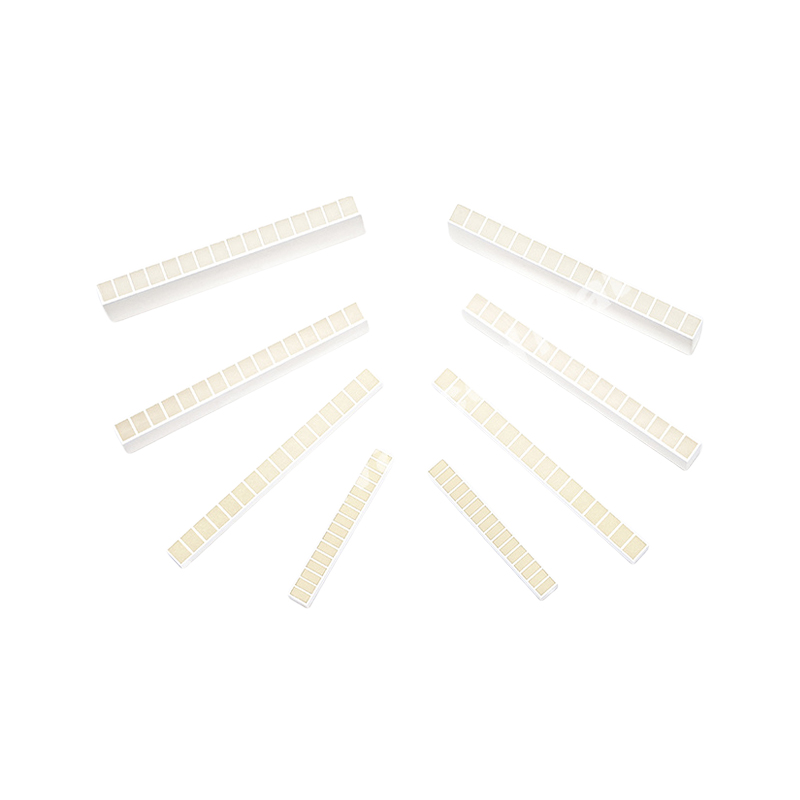

• Arrays of various pixel sizes

Technical Specification	CdWO_₄
Crystal system	Monoclinic
Density (g/cm³)	7.9
Wavelength of emission maximum (nm)	475
Atomic coefficient	64
Light yield（ph./MeV/y）	14000
Afterglow @20ms	<0.01%
Decay time (μs)	14
Cleavage plane	(010)
Refractive index	2.2 ~ 2.3
Hardness (Mohs)	4 ~ 4.5
Hygroscopic	No
Typical product form	Linear array / crystal
Typical applications	Vehicle and container check
Typical applications	High-energy physics detection

This document cannot be considered to be a contractual specification.

The information given herein may be modified without notice.
