Cadmium Tungstate Scintillation Crystals

CWOSC041230

All support customized drawings.

Cadmium tungstate (CdWO₄) scintillation crystals are self-activated luminescent materials. Characterized by low afterglow, high X-ray absorption coecient, elevated density, strong radiation resistance, non-deliquescence, and excellent stability, they represent the material of choice for core components in large-scale security inspection systems.

The company maintains a complete crystal processing production line, enabling customized fabrication of one-dimensional and two-dimensional arrays with various dimensions, as well as specialized shaped products.

Consult

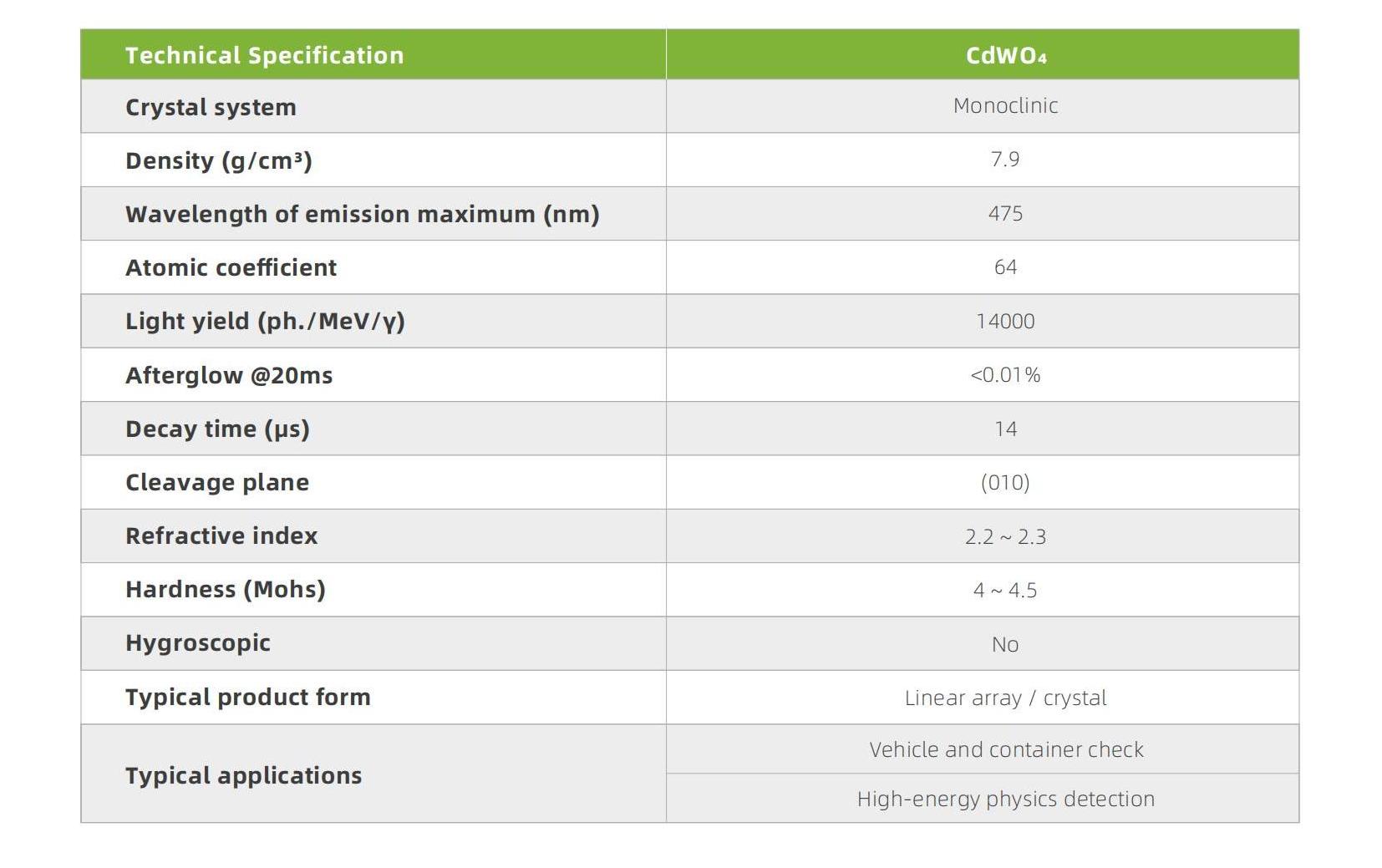

Features Technical Indicators Overall Dimension

Performance Characteristics：
Light Output (Relative to NaI): 30~50%
Afterglow @ 20ms: <0.01%
Density: 7.9 g/cm³
Decay Time: 14μs
Irradiation Length: 1cm
Processing Specifications：
Crystal Blank Size: Φ80x220mm
Various Pixel Arrays (with grids available)
Special-shaped and conventional cylindrical specifications
Customization services available
Application Fields：
Vehicle and Container Security Inspection
Non-Destructive Testing (NDT), Industrial CT
Security Inspection
Nuclear Medicine Imaging Equipment
High-Energy Physics Detection
